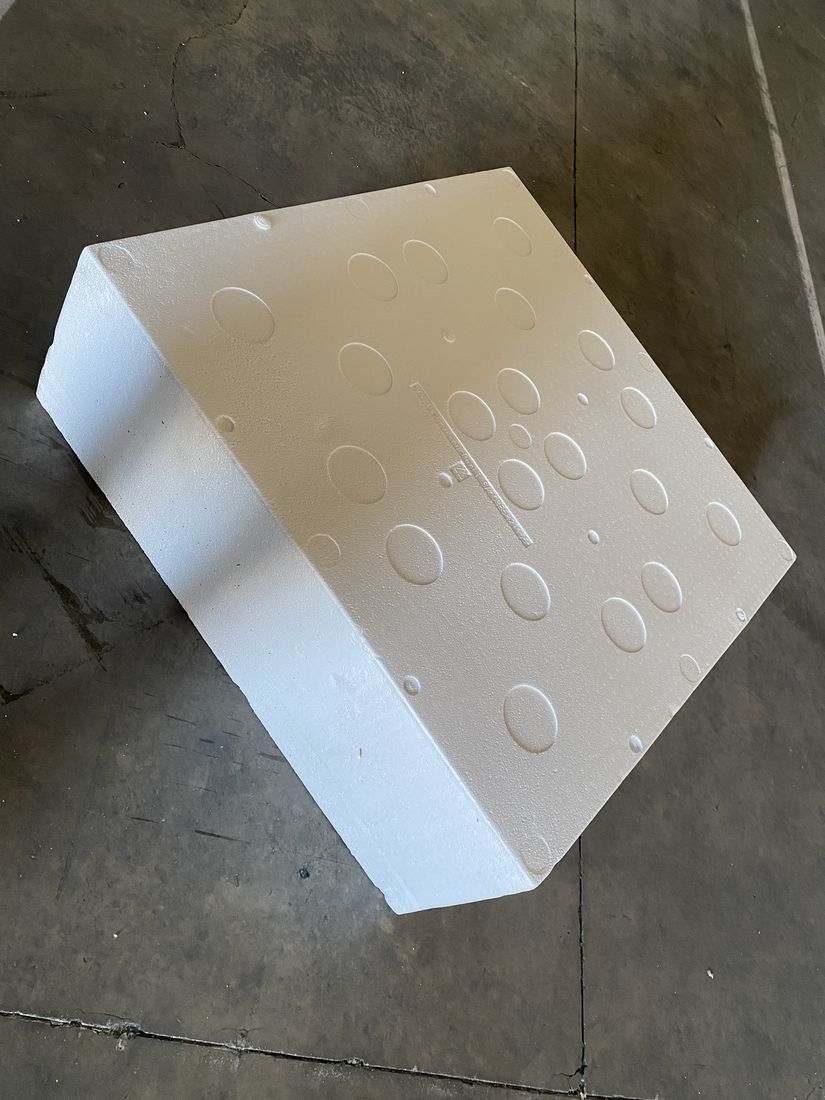

Styropod
Product codes
POD-150 styropod 150mm
POD-225 styropod 225mm
POD-300 styropod 300mm
POD-375 styropod 375mm
Application
Styropods are used in the building industry as voids in floating concrete foundation slabs to save in the cost of construction on suitable sites.
Dimensions
150: 1080mm x 1080mm x 150mm
225: 1080mm x 1080mm x 225mm
300: 1080mm x 1080mm x 300mm
375: 1080mm x 1080mm x 375mm
Required packing and handling method
Styropods are light in weight therefore are able to be shifted by hand or pallet truck as required.
Once delivered onto construction site existing supplies of steel etc must be used to weigh the styropods down to ensure weather does not move the styropods from the site.
While styropods are being installed into the foundation slab any scraps produced by the concreters must be collected and disposed of correctly.

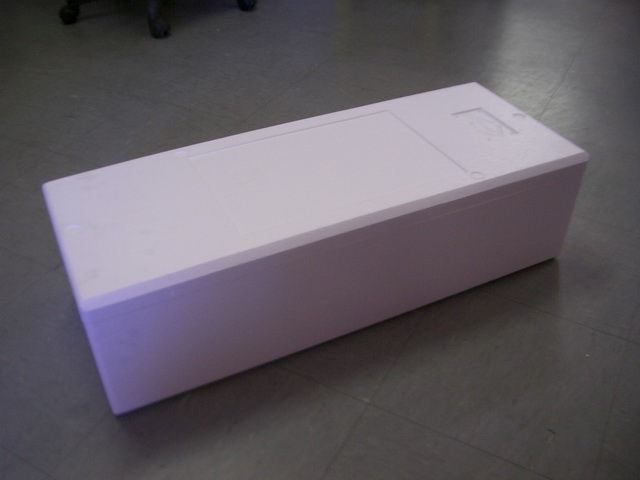

Salmon
Product codes
IPS-000 salmon xs
IPS-003 salmon s
IPS-002 salmon m
IPS-001 salmon l
Use
Salmon boxes are used for the packaging of seafood and originally intended for salmon.
Dimension & volume
IPS-000 outside 782mm x 302mm x 205mm
Inside 728mm x 248mm x 150mm volume 27.08 litres
IPS-003 outside 782mm x 302mm x 255mm
Inside 728mm x 248mm x 200mm volume 36.11 litres
IPS-002 outside 782mm x 302mm x 290mm
Inside 728mm x 248mm x 235mm volume 42.43 litres
IPS-001 outside 782mm x 302mm x 322mm
Inside 728mm x 248mm x 270mm volume 48.74 litres
Required packing and handling method
Salmon boxes are moved by hand and filled with product and ice/ice packs to the specified weight of each size box. Tape must then be used to hold box and lid together and seal area all the way around the box where the lid seals against the box.

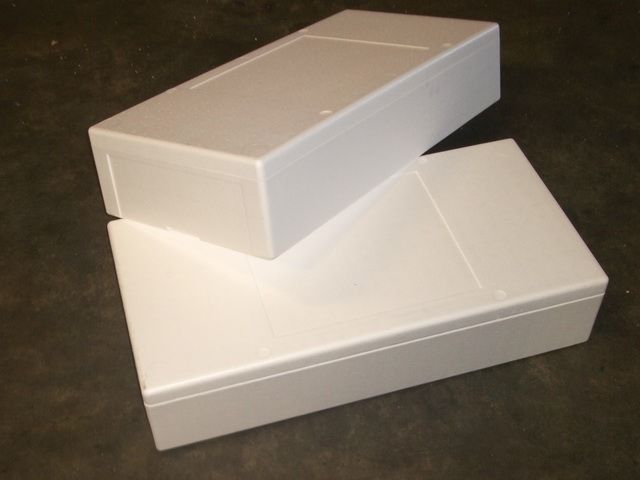

Fillet
Product codes
FIL-022 fillet s
FIL-021 fillet m
FIL-020 fillet l
Use
Fillet box is used for the packaging of fish fillets and other seafoods.
Dimensions & volumes
FIL-022 outside 782mm x 386mm x 165mm
Inside 728mm x 332mm x 109mm - volume 26.34 litres
FIL-021 outside 782mm x 386mm x220mm
Inside 728mm x 332mm x 164mm - volume 39.64 litres
FIL-020 outside 782mm x 386mm x 275mm
Inside 728mm x 332mm x 219mm - volume 52.93 litres
Required packing and handling method
Fillet boxes are moved by hand and filled with product and ice/ice packs to the specified weight of each size box. Tape must then be used to hold box and lid together and seal area all the way around the box where the lid seals against the box.

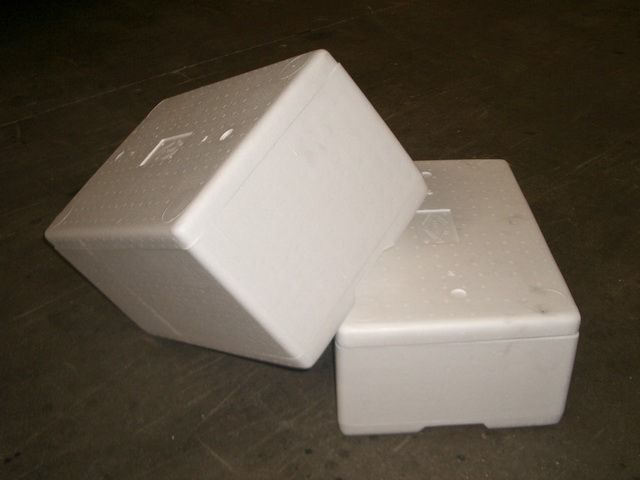

Fish
Product codes
IPF-009 fish s
IPF-005 fish m
IPF-004 fish l
Use
Fish boxes are primarily used for packaging of seafood.
Dimensions & volumes
IPF-009 outside 580mm x 390mm x 205mm
Inside 526mm x 336mm x 160mm - volume 28.28 litres
IPF-005 outside 580mm x 390mm x 260mm
Inside 526mm x 336mm x 206mm - volume 36.41 litres
IPF-004 outside 580mm x 390mm x 345mm
Inside 526mm x 336mm x 291mm - volume 51.43 litres
Required packing and handling method
Fish boxes are moved by hand and filled with product and ice/ice packs to the specified weight of each size box. Tape must then be used to hold box and lid together and seal area all the way around the box where the lid seals against the box.

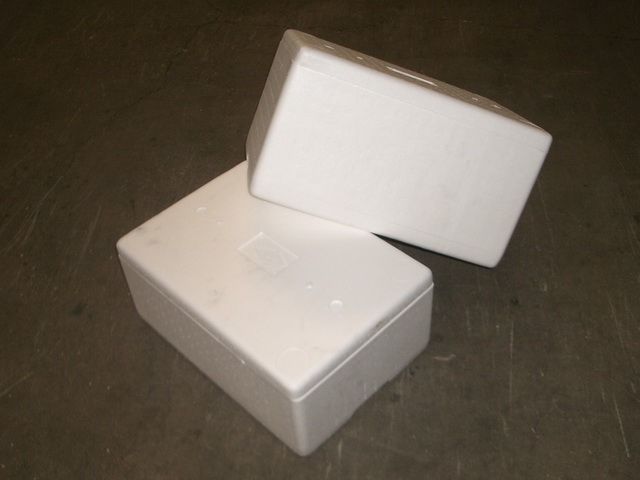

Oyster
Product codes
IPO-008 oyster s
IPO-007 oyster m
IPO-006 oyster l
Use
Oyster boxes are used for the packaging of oysters and fish but can also be used for the packaging of sprouts and other vegetables.
Dimensions & volumes
IPO-008 outside 484mm x 338mm x
Inside 445mm x 290mm x 166mm
IPO-007 outside 484mm x 338mm x 210mm
Inside 445mm x 290mm x 166mm - volume 21.42 litres
IPO-006 outside 484mm x 338mm x 270mm
Inside 445mm x 290mm x 226mm - volume 29.17 litres
Required packing and handling method
Oyster boxes are moved by hand and filled with product and ice/ice packs to the specified weight of each size box. Tape must then be used to hold box and lid together and seal area all the way around the box where the lid seals against the box.

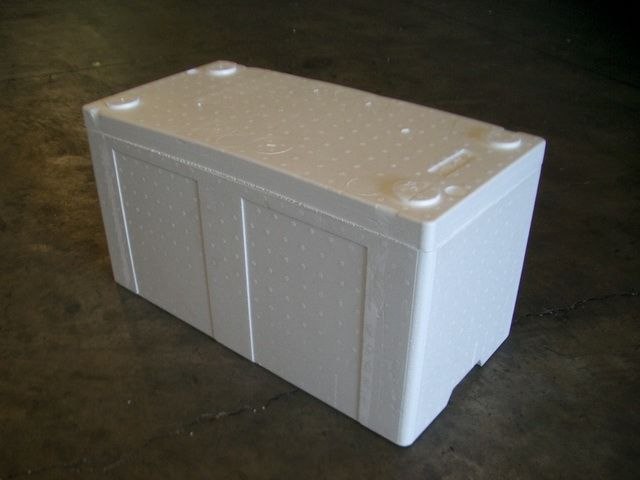

BROCOLLI
Product codes
IPM-012 ex broc
Use
Broccolli boxes are generally used for the packaging of broccolli and other vegetable products.
Dimensions & volumes
IPM-012 outside 582mm x 290mm x 315mm
Inside 544mm x 251mm x 254mm - volume 34.68 litres
Required packing and handling method
Brocolli boxes are moved by hand and filled with product and ice/ice packs to the specified weight of each size box. Tape must then be used to hold box and lid together and seal area all the way around the box where the lid seals against the box.

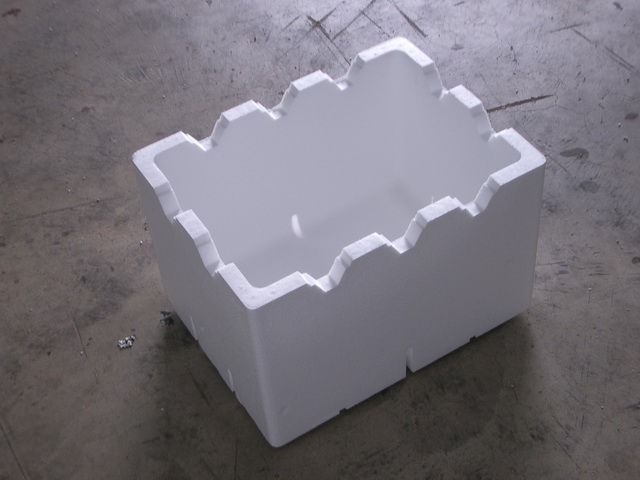

1/4 CASE / TOMATO
Product codes
9-12 ¼ case
18-12 tomato
Use
¼ case is used for the packaging of fruit while the tomato box is used generally for the packaging of tomatoes.
Dimensions & volumes
9-12 outside 385mm x 290mm x 155mm
Inside 348mm x 251mm x 130mm - volume 11.36 litres
18-12 outside 385mm x 290mm x 260mm
inside 348mm x 251mm x 235mm - volume 20.53 litres
Required packing and handling method
¼ cases are moved by hand and are packed with fruit using a sandwich of bubble pad and card lid tapped on the top to keep fruit from moving during transportation. The ¼ case is then packed onto a pallet and finished pallet is then plastic wrapped for transport. Tomato boxes are moved by hand and are packed loosely with fruit. The tomato boxes are then packed onto a pallet and finished pallet is then plastic wrapped for transport.

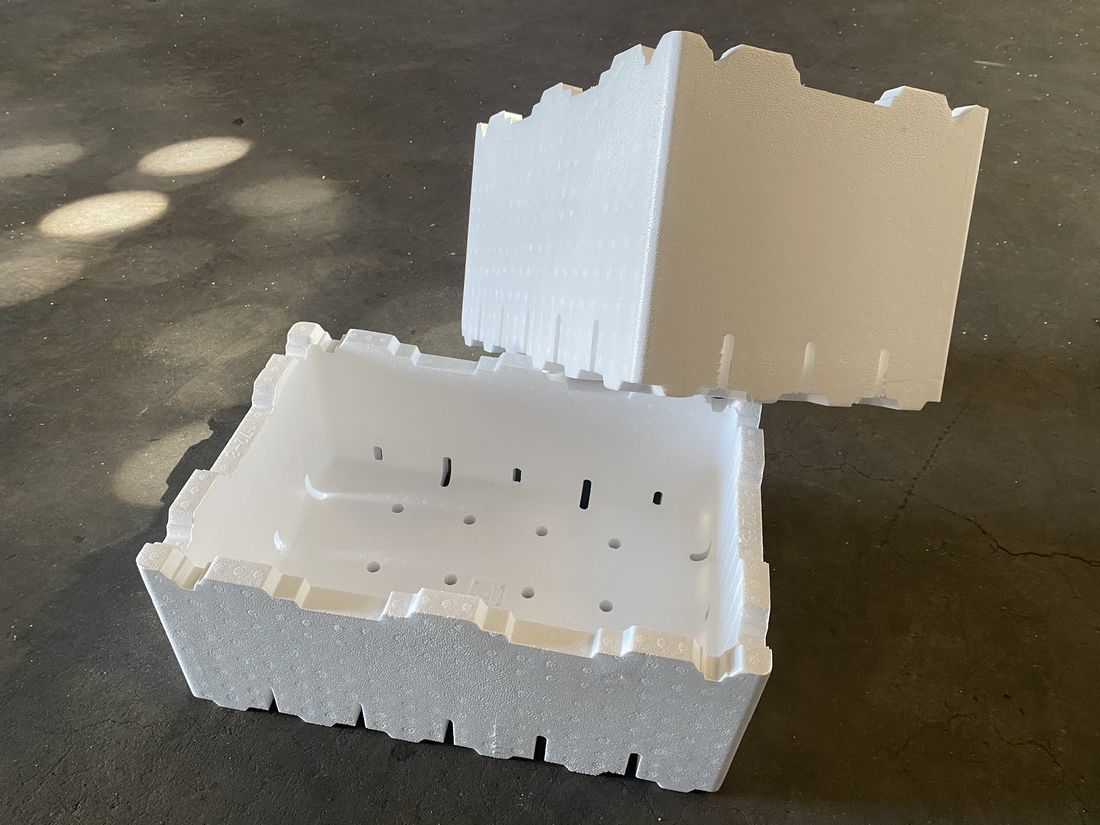

10KG/12KG CROSS STACK PRODUCE BOX
Product code
18-8X 10kg produce box
172-8X 12kg produce box
Use
18-8X and 172-8X produce box are used for the packaging of fruit and vegetables.
Dimensions & volumes
18-8X outside 495mm x 330mm x 180mm
Inside 449mm x 284mm x 156mm - volume 19.9 litres
172-8X outside 495mm x 330mm x 205mm
inside 449mm x 284mm x 181mm - volume 23.08 litres
Required packing and handling method
18-8X & 172-8X produce boxes are moved by hand and are packed with produce in a suitable method. The produce boxes are then packed onto a pallet and ready for transport.
30/32 LITRE CROSS STACK PRODUCE BOX
Product code-
30-8X 30 litre produce box
32-8X 32 litre produce box
Use
30-8X, and 32-8X produce boxes are used for the packaging of fruit and vegetables.
Dimensions & volumes
30-8X outside 495mm x 330mm x 257mm
Inside 449mm x 284mm x 235mm volume 29.96 litres
32-8X outside 495mm x 330mm x 275mm
inside 449mm x 284mm x 252mm volume 32.13 litres
Required packing and handling method
30 and 32Lt produce boxes are moved by hand and packed with produce. The filled boxes can be palletised and wrapped ready for transportation.

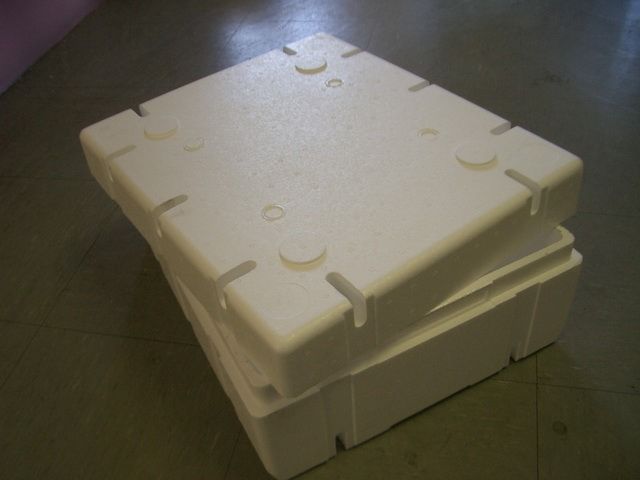

EXPORT GRAPE
Product code
EXG-023
Use
Export grape boxes are used for the packaging of table grapes generally for export overseas.
Dimensions & volumes
EXG-023 outside 437mm x 369mm x 184mm
Inside 400mm x 332mm x 148mm - volume 19.65 litres
Required packing and handling method
Export grape boxes are moved by hand and pallet truck and generally packed using a plastic liner with the grapes put into this liner, folded over and lid placed on top. Packed boxes are then placed on appropriate pallet using corner angles on each corner and then wrapped using vented plastic wrapping ready for transport.

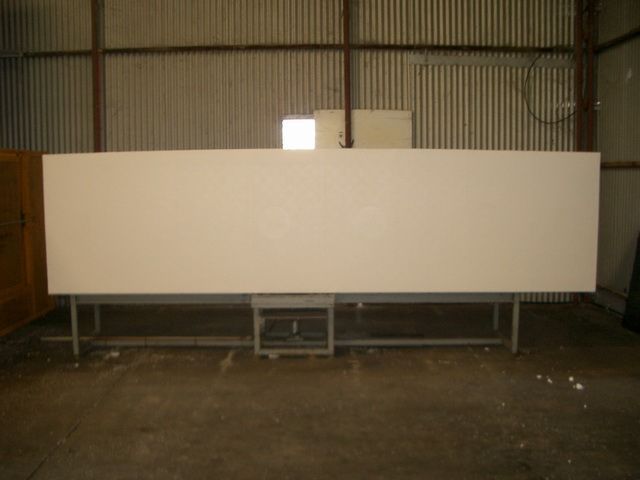

BLOCK / CUT PARTS
Product Grades
SL, S, M, H, VH & VVH available to provide different densities with different strengths and insulation properties.
Application
Block and cut parts are used for insulation, building panels, packaging and 2D polystyrene shapes. The impact resistance is a major feature of Expanded Polystyrene and cheap if needing a product just to fill a void, like in concrete.
Dimension & volume
Block 4800mm x 1200mm x 600mm
Usable volume per block is 3.456 M3

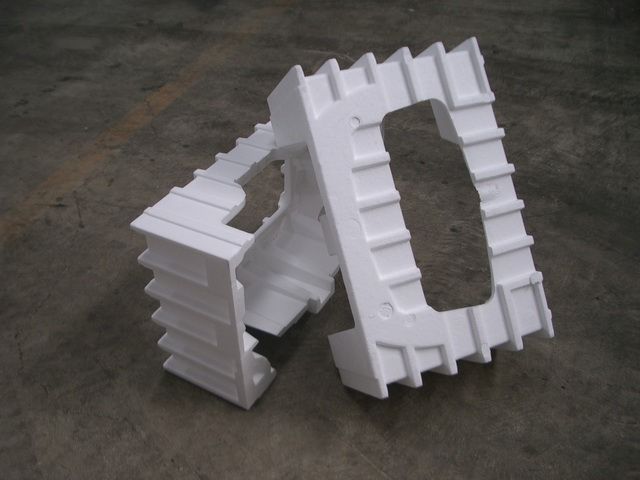

CUSTOM SHAPE MOULDINGS
Application- Custom shape mouldings are used in packaging situations where impact protection is required and a high volumes of parts are needed. There few materials which can be used to substitute polystyrene as a packaging material due to it protective properties at a comparative cost although moulds initially can be quite expensive to purchase. Valls Styrene Packaging are able to produce mouldings using modern technologies to provide quality parts and service to our customers.
Dimensions- Valls Styrene Packaging are able to produce mouldings up to 1800mm x 1300mm x 380mm in dimension (one of the largest in Australia). Valls Styrene Packaging have 6 sizes of machine to cater for any size application required.

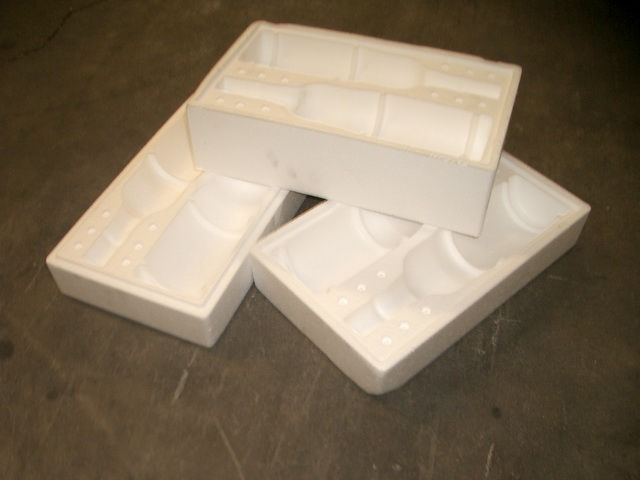

WINE PACK
Product codes
WINE-TOP top assemblies
WINE-MID middle assemblies
Use
Wine packs are used for packaging bottled wine in multiples of 2’s.
Dimensions
WINE-TOP 365mm x 220mm x 67mm
WINE-MID 365mm x 220mm x 110mm
Required packing and handling method
Bottled wine is placed into top assembly and either another top assembly placed on top to package only 2 bottles or a middle assembly is used to increase package by 2 bottles with another top assembly placed on top. Packaging tape is then used to secure the assemblies together. Middle assemblies enable many bottles to be packaged in multiples of 2.
